₨1,335,000
8 in stock
8 in stock

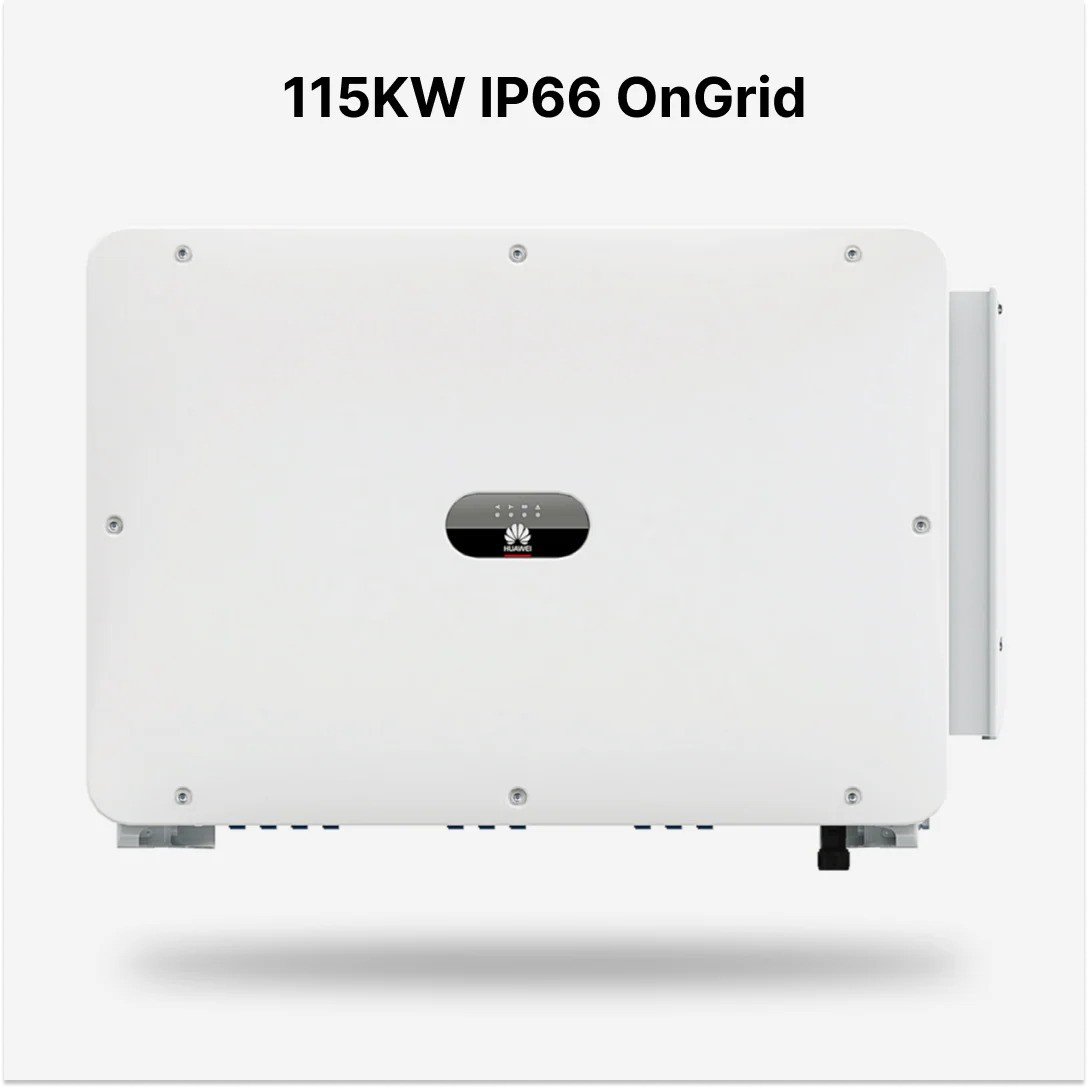

The Huawei SUN2000-115KTL-M2 is a high-performance three-phase On-Grid solar inverter engineered for
large commercial, industrial, and utility-scale solar installations. Equipped with advanced MPPT technology,
intelligent monitoring, robust outdoor protection, and industry-leading efficiency, this inverter delivers reliable power
conversion and maximum energy harvest for demanding solar projects.
With a compact and lightweight design (93 kg) and IP66 protection rating, it is ideal for outdoor
installations in harsh environments. Its transformerless topology and multiple safety protections make it a top choice
for high-yield solar energy systems worldwide.
| Specification | Details |
|---|---|
| Model | SUN2000-115KTL-M2 |
| Rated AC Output | 115 kW |
| Max AC Apparent Power | 125 kVA |
| Maximum Efficiency | Up to 98.8 % |
| Nominal AC Voltage | 400 V / 480 V (3-Phase) |
| Frequency Range | 50 Hz / 60 Hz |
| Number of MPPTs | 10 |
| PV String Inputs | 20 |
| Max DC Input Voltage | 1100 V |
| Operating DC Voltage Range | 200 – 1000 V |
| Max Input Current per MPPT | 30 A |
| Protection | IP66, Type II Surge Protection |
| Cooling | Smart Air Cooling |
| Weight | ~93 kg |
| Dimensions | 1035 × 700 × 365 mm |
| Operating Temperature | -25°C to +60°C |
| Max Altitude | 4000 m |
| Night Consumption | < 3.5 W |
| Warranty | 5 Years (Extendable) |
