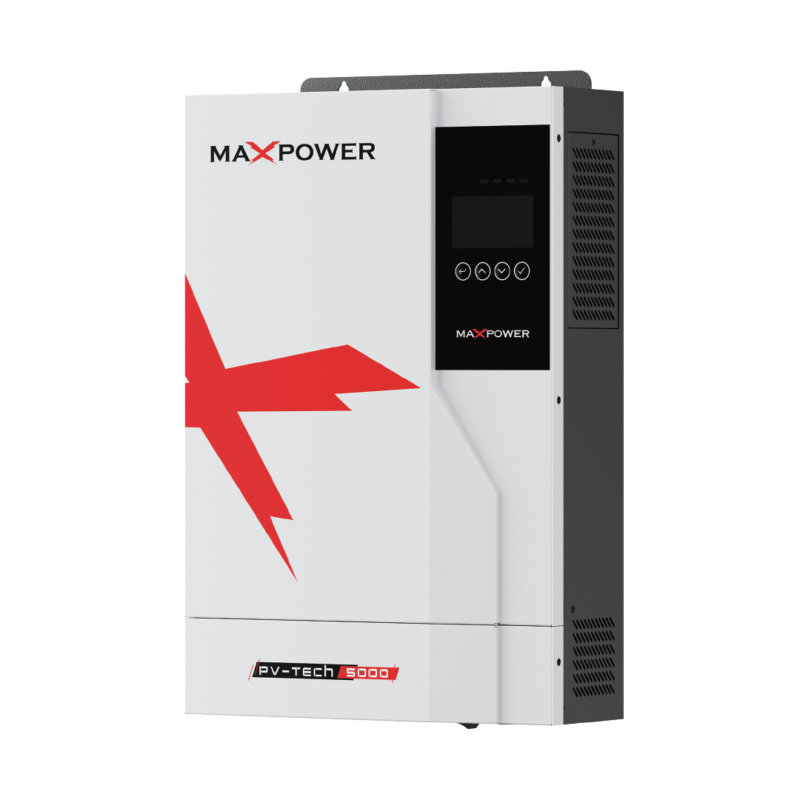

The PV Tech 5000 is a reliable and high-performance solar inverter designed for both residential and commercial backup applications. It delivers a rated output power of 3.6 kW with a 5.7 kVA surge capacity, ensuring smooth operation during high startup loads. With pure sine wave output and a fast 10 ms transfer time, it provides stable and uninterrupted power for sensitive appliances.

The inverter features a built-in MPPT solar charger supporting up to 5000 W PV input with an 18A current rating and a wide 40–450 VDC MPPT operating range. It also offers up to 100A PV charging and 100A AC charging capability, ensuring efficient and flexible energy management.

Designed for a 24V battery system, the PV Tech 5000 is compatible with both lithium-ion and lead-acid batteries. It includes precise charging control with a 27V float voltage and 30.5V overcharge protection to enhance battery safety and lifespan.

For monitoring and system control, the unit is equipped with an LCD HMI display, RS485/RS232 and USB communication ports, dry contact interface, and optional WiFi connectivity for remote access. Built with IP21 protection, it operates reliably in temperatures ranging from –10°C to 50°C and at altitudes up to 4000 meters (with derating). Its compact dimensions of 420 × 284 × 94 mm and lightweight 6.4 kg design make it an efficient and space-saving solution for modern solar systems.
