Sale!

Solis 6kw plus Hybrid

Original price was: ₨250,000.Current price is: ₨240,000.

Quantity
Wishlist

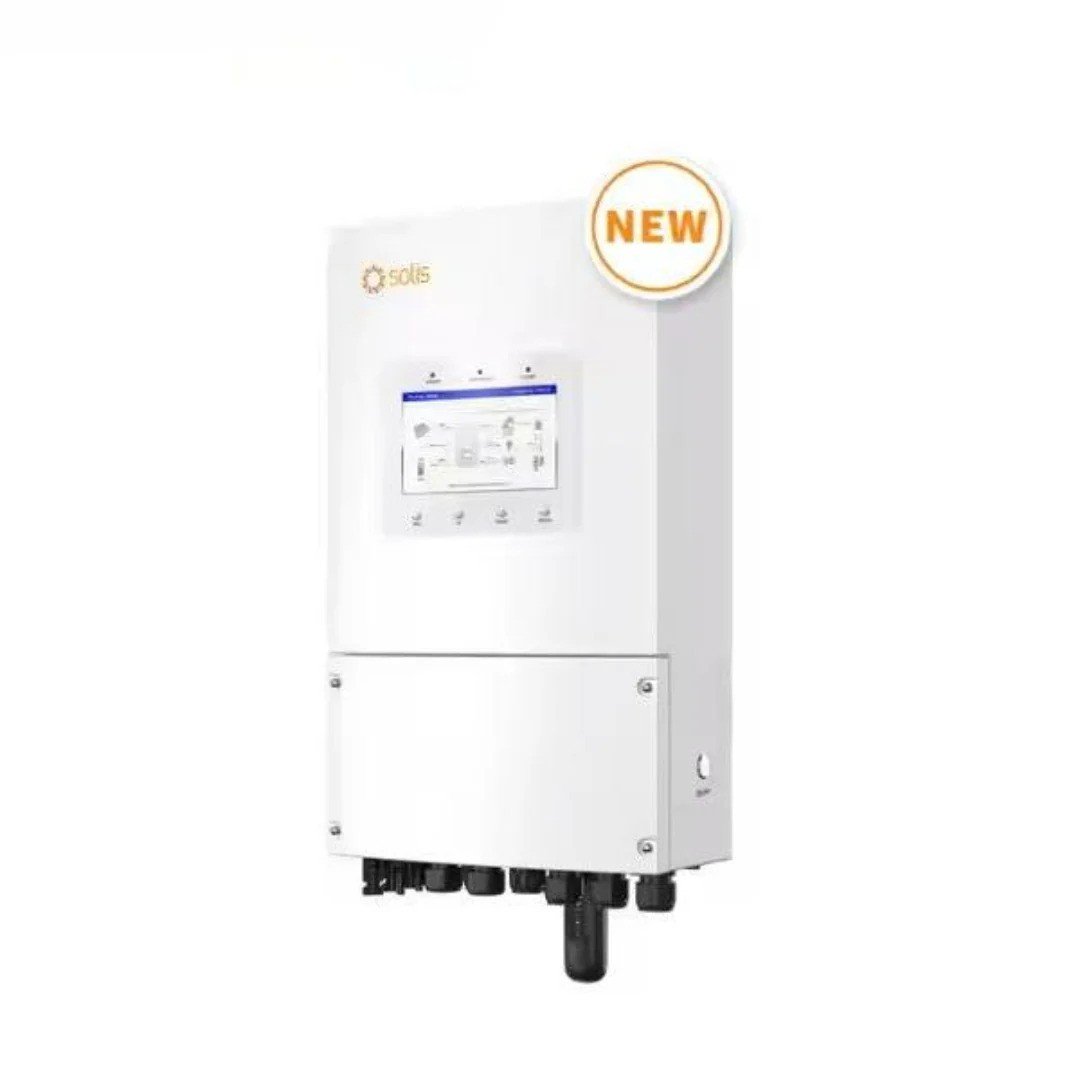

🌞 Solis S6‑EH1P6K‑L‑PLUS 6 kW Hybrid Solar Inverter — Overview

The Solis 6 kW Plus (model S6‑EH1P6K‑L‑PLUS) is a single‑phase hybrid solar inverter designed for residential and light commercial solar systems with battery storage. It combines solar power, grid electricity, and battery energy with intelligent backup and load‑management features.

🔌 Key Features

  • Hybrid Operation – Integrates solar panels, battery storage, and grid power, with automatic switching and UPS‑type backup.
  • Generator Compatibility – Connects to a generator and can automatically start/stop it based on conditions.
  • Automatic UPS Switching – Fast transition to backup power (< 4 ms), with surge capability for heavy loads. (Manuals+)
  • MQTT/Remote Monitoring – 7″ LCD display + Bluetooth + smartphone app support; optional Wi‑Fi/LAN/GPRS.
  • Peak Shaving & Control – Offers “self‑use” and “generator” peak shaving modes to optimize energy cost.
  • Parallel‑Ready – Multiple units can operate together for larger systems (e.g., up to ~36 kW).
  • Weatherproof & Durable – IP66 dust/water protection for outdoor installation environments.

📊 Technical Specifications (Datasheet‑Style)

Specification Value
Model Solis S6‑EH1P6K‑L‑PLUS
Output Power (Rated) 6 kW AC
Surge Power 200% of rated (for 10 s)
PV Input – Max Array Size 12 kW
Max Usable PV Power 9.6 kW
MPPT Dual MPPT (2 channels)
MPPT Voltage Range 90 V – 435 V
Start‑up Voltage 90 V
Max PV Input Voltage ~500 V
Battery Compatibility Li‑ion / Lead‑acid
Battery Voltage Range ~40 V – 60 V
Max Charge/Discharge Current 135 A
AC Voltage Output 220 / 230 V
Frequency 50/60 Hz
Efficiency (Peak) ~96.2 %
EU Efficiency ~96.1 %
THD (AC) < 2 %
Connections AC: Terminal Block; DC: MC4 & Terminal
Communication RS485, CAN; optional Wi‑Fi / GPRS / LAN
Display 7″ LCD + Smartphone Monitor
Protection Level IP66
Operating Temp −40 °C to +60 °C
Dimensions ~335 × 560 × 253 mm
Weight ~23.5 kg
Parallel Capability Yes (expandable)
Standards & Safety IEC/EN: various grid & EMC standards
Typical Uses Homes, businesses, hybrid solar + battery + generator systems

📄 Datasheet Download

You can download the official datasheet (PDF) for the Solis S6‑EH1P(3‑8)K‑L‑PLUS series, which includes the 6 kW model, from this reference — this file contains manufacturer specifications and detailed electrical characteristics: Download Solis S6‑EH1P(3‑8)K‑L‑PLUS Datasheet (PDF)


🧠 Summary

The Solis 6 kW Plus hybrid inverter is a robust, feature‑rich solution ideal for solar systems that require:

  • Seamless backup power during grid outages
  • Ability to combine solar + battery + generator
  • High efficiency and flexible control
  • Scalable capacity via parallel connection

This model is especially suitable for medium to large homes or small commercial setups that want both energy independence and intelligent energy management.
